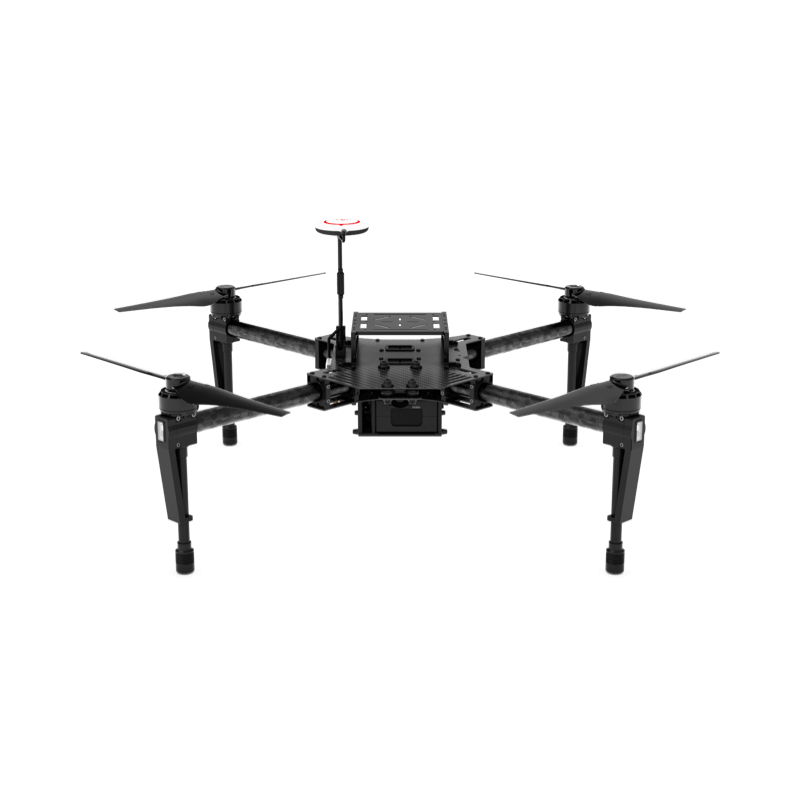

Matrice 100

The Matrice 100 is a modular development platform designed for customization, SDK integration, and professional research applications. It supports multiple payloads, cameras, and onboard computing systems, making it suitable for advanced UAV development and industrial use cases.

Key Specifications

• Diagonal wheelbase: 650 mm

• Max takeoff weight: up to 3.4 kg

• Airframe type: customizable quadcopter platform

• Flight controller: DJI N1 system

• Max flight time: up to 28 minutes (no payload, dual battery setup)

• Supported payload: up to approx. 1 kg (varies by configuration)

• Max speed: up to 22 m/s (ATTI mode, no payload)

• Max wind resistance: 10 m/s

• Hover accuracy: ±0.5 m vertical / ±2.5 m horizontal

• Operating temperature: -10°C to 40°C

• Modular expansion bays for additional hardware

Modular Development Platform

The Matrice 100 is built for customization, allowing developers to integrate sensors, cameras, and onboard computers. Its open architecture supports research, mapping, and prototyping applications.

SDK and Programming Support

It supports enabling autonomous flight control, mission planning, and custom application development. Ideal for robotics research and AI-based drone projects.

Payload Flexibility

Designed to carry various payloads including cameras and development modules. The modular frame allows easy hardware upgrades for different mission requirements.

Stable Professional Flight Performance

Equipped with N1 flight system, it delivers stable and controlled flight even in demanding environments. It is optimized for experimentation and industrial testing scenarios.
